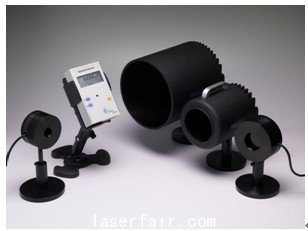

Astral S系列焦熱電激光功率計具有便攜，可靠，結實，簡單，準確的特點，加上10W大功率范圍，已成為研發、維修人員的良好助手。大LCD顯示，合理的按鍵設置，使操作更為簡便。提供RS232通信功能，可實現實時光功率監測。在科研、通訊、醫療等測試領域廣泛使用。
特點：
? 功率或能量測量
? 外殼緊密包裝
? 符合美國國家標準
? 微處理控制
? 簡易使用界面
? 可用衰減器擴大測量范圍
主要參數：
|
ASTRALTM SERIES S CALORIMETER SECIFICATIONS |
||||||||
|
模型 |
AC2500S |
AC25FXS |
ACX25FXS |
AC2501S |
ACX2501S |
ACX2504S |
AC25UVS |
|
|
吸收類型 |
Surface |
Surface |
Surface |
Volume |
Volume |
Volume |
Volume |
|
|
孔徑直徑 |
25.4 mm |
25.4 mm |
8 mm |
25.4 mm |
8 mm |
25.4 mm |
25.4 mm |
|
|
光譜響應 |
0.25-35μm |
0.193-26μm |
0.4-2μm |
0.266-1.2μm |
0.4-1.2μm |
0.85-4.2μm |
0.193-0.36μm |
|
|
最大平均功率 |
10W |
|||||||
|
最小平均功率 |
1mW |
|||||||
|
噪音水平 |
10 W/J |
|||||||
|
最大P.D. |
200W/ cm2 |
6kW/cm2 |
48kW/ cm2 |
Note 1 |
Note 2 |
Note 4 |
Note 3 |
|
|
最大P.P.D |
1M W/ cm2 |
Note 15 |
Note 16 |
Note 5 |
8.5GW/ cm2 |
Note 7 |
Note 6 |
|
|
最大信號脈沖 |
30J |
|||||||
|
最大E.D. |
Note 8 |
Note 9 |
Note 10 |
Note 11 |
Note 12 |
Note 14 |
Note 13 |
|
|
精確性 |
<1% |
|||||||
|
精度 |
±3% |
|||||||
|
響應時間 |
3s |
|||||||
|
Dims DXL-in |
3.8×2.2 |
3.8×2.2 |
3.8×3.8 |
3.8×2.2 |
3.8×3.8 |
3.8×2.2 |
3.8×2.2 |
|
|
Cm |
9.5×5.6 |
9.5×5.6 |
9.5×9.7 |
9.5×5.6 |
9.5×9.7 |
9.5×5.6 |
9.5×5.6 |
|
|
重量-lbs/kg |
1.5/0.7 |
1.5/0.7 |
1.5/0.8 |
1.5/0.7 |
1.5/0.8 |
1.5/0.7 |
1.5/0.7 |
|
|
ASTRALTM SERIES S CALORIMETER SECIFICATIONS |
|||||||
|
模型 |
AC5000S |
AC50FXS |
ACX50FXS |
AC5001S |
ACX5001S |
ACX5004S |
AC50UVS |
|
吸收類型 |
Surface |
Surface |
Surface |
Volume |
Volume |
Volume |
Volume |
|
孔徑直徑 |
50.8mm |
50.8mm |
16mm |
50.8mm |
16mm |
50.8mm |
50.8mm |
|
光譜響應 |
0.25-35μm |
0.193-26μm |
0.4-2μm |
0.266-1.2μm |
0.4-1.2μm |
0.85-4.2μm |
0.193-0.36μm |
|
最大平均功率 |
30W |
||||||
|
最小平均功率 |
40mW |
||||||
|
噪音水平 |
400μW/μJ |
||||||
|
最大P.D. |
200W/ cm2 |
6kW/cm2 |
48kW/ cm2 |
Note 1 |
Note 2 |
Note 4 |
Note 3 |
|
最大P.P.D |
1M W/cm2 |
Note 15 |
Note 16 |
Note 5 |
8.5GW/ cm2 |
Note 7 |
Note 6 |
|
最大信號單脈沖 |
100J |
||||||
|
最大E.D. |
Note 8 |
Note 9 |
Note 10 |
Note 11 |
Note 12 |
Note 14 |
Note 13 |
|
精確性 |
<1% |
||||||
|
精度 |
±3% |
||||||
|
響應時間 |
3s |
||||||
|
Dims DXL-in |
4.8×2.3 |
4.8×2.3 |
4.8×3.9 |
4.8×2.3 |
4.8×3.9 |
4.8×2.3 |
4.8×2.3 |
|
Cm |
12.1×5.8 |
12.1×5.8 |
12.1×10.0 |
12.1×5.8 |
12.2×10.0 |
12.1×5.0 |
12.1×5.8 |
|
重量-lbs/kg |
2.9/1.3 |
2.9/1.3 |
3.1/1.4 |
2.9/1.3 |
1.5/0.8 |
3.1/1.4 |
2.9/1.3 |
|
ASTRALTM SERIES S LARGE APERTURE CALORIMETER |
||||||||||
|
模型 |
360401S |
380401S |
380402S |
384UV5S |
360801S |
380801S |
380802S |
388UV5S |
||
|
吸收類型 |
Surface |
Volume |
Volume |
Volume |
Surface |
Volume |
Volume |
Volume |
||
|
孔徑直徑 |
100mm |
20mm |
||||||||
|
光束直徑 |
5cm |
7.5cm |
||||||||
|
光譜響應 |
0.25-35μm |
0.266-1.2μm |
0.9-1μm |
0.193-0.36μm |
0.25-35μm |
0.266-1.2μm |
9-11μm |
0.193-0.36μm |
||
|
最大平均功率 |
150mW |
700mW |
||||||||
|
噪音水平 |
1.5mW/mJ |
70mW/mJ |
||||||||
|
最大P.D |
200W/cm2 |
Note 17 |
4W/cm2 |
Note 3 |
200W/cm2 |
Note 18 |
4W/cm2 |
Note 3 |
||
|
最大P.P.D |
1MW/cm2 |
Note 19 |
100MW/cm2 |
Note 6 |
1MW/cm2 |
Note 20 |
100MW/cm2 |
Note 6 |
||
|
最大信號脈沖 |
300J |
1000J |
500J |
1000J |
1000J |
|||||
|
最大E.D. |
Note 8 |
Note 21 |
4J/cm2 |
Note 13 |
Note 8 |
Note 22 |
4J/cm2 |
Note 13 |
||
|
精確性 |
<1% |
<1% |
||||||||
|
精度 |
±5% |
±5% |
||||||||
|
響應時間 |
5s |
3s |
||||||||
|
Dims DXL-in /cm |
6.0×8.0/15.2×20.3 |
9.0×10.0/22.9×25.4 |
||||||||
|
重量-lbs/kg |
6/2.7 |
16.3/7.3 |
||||||||
NOTES
|
NOTES |
||
|
Note1 |
AC2500S,AC5001S |
30W/cm2@1064nm,23W/cm2@532nm, 4.5W/cm2@355nm,175mW/cm2@266nm, |
|
Note2 |
ACX2501S,ACX5001S |
30W/cm2@1064nm,23W/cm2@532nm, |
|
Note3 |
AC25UVS,AC50UVS,384UV5S,388UVS |
50W/cm2@355nm |
|
Note4 |
AC2504S, AC5004S |
35W/cm2@1064nm |
|
Note5 |
AC2501S,AC5001S |
100GW/cm2@1064nm,78GW/cm2@532nm, 29GW/cm2@355nm,3.5GW/cm2@266nm, |
|
Note6 |
AC250UVS,AC50UVS,384UV5S,388UV5S |
重復脈沖：101MW/cm2@355nm 單脈沖：3.5GW/cm2@355nm |
|
Note7 |
AC2504S,AC5004S |
125GW/cm2@1064nm |
|
Note8 |
AC2500S,AC5000S,360401S,360801S |
1100×(脈寬）1/2<200J/cm2 |
|
Note9 |
AC250FXS,AC50FXS |
4150×(脈寬）1/2<123J/cm2 |
|
Note10 |
ACX25FXS,AC50FXS |
39600×(脈寬）1/2<36.9J/cm2 |
|
Note11 |
AC2501S,AC5001S |
重復脈沖：4.1J/cm2@1064nm,3.2J/cm2@532nm, 1.2J/cm2@355nm,24mJ/cm2@266nm 單脈沖：8J/cm2@1064nm,6.2J/cm2@532nm, 2.3J/cm2@355nm,46mJ/cm2@266nm |
|
Note12 |
ACX2501S,AC5001S |
重復脈沖：32.8J/cm2@1064nm,25.6J/cm2@532nm 單脈沖：8J/cm2@1064nm,6.2J/cm2@532nm |
|
Note13 |
AC25UVS,AC50UVS,384UV5S,388UV5S |
重復脈沖：1.1J/cm2@355nm, 單脈沖：40J/cm2@355nm |
|
Note14 |
AC25004S,AC5004S |
重復脈沖：4.8J/cm2@1064nm, 單脈沖：10J/cm2@1064nm |
|
Note15 |
AC25FXS,AC50FXS |
脈沖最大峰值功率：70MW/cm2@1064nm |
|
Note16 |
ACX25FXS,ACX50FXS |
脈沖最大峰值功率：560MW/cm2@1064nm |
|
Note17 |
380401S |
27W/cm2@1064nm,21W/cm2@532nm, 7.7W/cm2@355nm,158mW/cm2@266nm, |
|
Note18 |
380801S |
13.5W/cm2@1064nm,10.5W/cm2@532nm, 3.85W/cm2@355nm,79mW/cm2@266nm, |
|
Note19 |
380401S |
90GW/cm2@1064nm,71GW/cm2@532nm, 27GW/cm2@355nm,530MW/cm2@266nm, |
|
Note20 |
380801S |
45GW/cm2#p#分頁標題#e#@1064nm,35.5GW/cm2@532nm, 13.5GW/cm2@355nm,265MW/cm2@266nm, |
|
Note21 |
380401S |
重復脈沖：3.7J/cm2@1064nm,2.9J/cm2@532nm, 1J/cm2@355nm,20mJ/cm2@266nm 單脈沖：7J/cm2@1064nm,5.6J/cm2@532nm, 2.1J/cm2@355nm,41mJ/cm2@266nm |
|
Note22 |
380801S |
重復脈沖：1.85J/cm2@1064nm,1.45J/cm2@532nm, 0.5J/cm2@355nm,10mJ/cm2@266nm 單脈沖：3.5J/cm2@1064nm,2.8J/cm2@532nm, 1.05J/cm2@355nm,20.5mJ/cm2@266nm |
